产品描述
参考号:	7M3 698 151 A
名称:	Brake Pad Set
单位:	SET
价格:

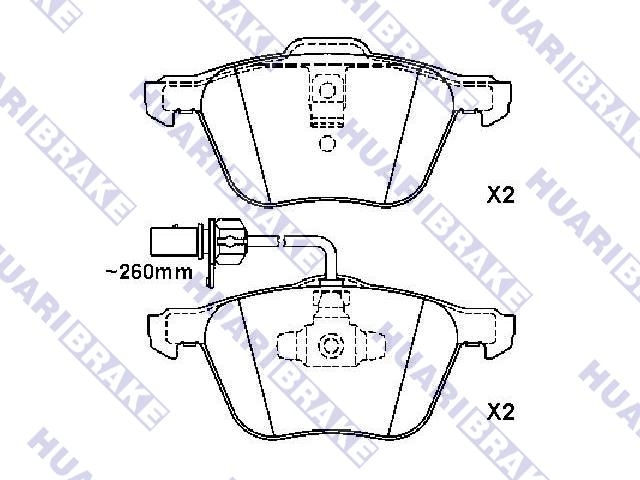

Front Axle Brake System : ATE Width : 161.4 mm Height : 72.9 mm Height 1 : 74.4 mm Thickness : 19.8 mm

车型	发动机			类型	缸数	年份
福特银河MPV (WGR)					4/00 - 5/06
GALAXY (WGR) 2.8 V6	AYL	2792	204	MPV	6	4/00 - 5/06
西特(西亚特) 西亚特阿尔汉不拉MPV (7V8, 7V9)					6/00 - 3/10
ALHAMBRA (7V8, 7V9) 1.8 T 20V	AJH	1781	150	MPV	4	0/97 - 3/10
ALHAMBRA (7V8, 7V9) 1.9 TDI 4motion	AUY	1896	115	MPV	4	6/00 - 3/10
ALHAMBRA (7V8, 7V9) 2.8 V6	AYL	2792	204	MPV	6	6/00 - 3/10
大众莎兰MPV(7M8,7M9,7M6)					4/00 - 3/10
SHARAN (7M8, 7M9, 7M6) 1.8 T 20V	AJH	1781	150	MPV	4	9/97 - 3/10
SHARAN (7M8, 7M9, 7M6) 1.9 TDI 4motion	AUY	1896	115	MPV	4	4/00 - 3/10
SHARAN (7M8, 7M9, 7M6) 2.8 V6 24V	AYL	2792	204	MPV	6	4/00 - 3/10
SHARAN (7M8, 7M9, 7M6) 2.8 V6 24V 4motion	AYL	2792	204	MPV	6	4/00 - 3/10
大众运输者四代箱式车 (70XA)					9/95 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 1.9 D	1X	1896	61	Box	4	7/90 - 2/95
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 1.9 TD	ABL	1896	68	Box	4	0/92 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.0	AAC	1968	84	Box	4	7/90 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.4 D	AAB	2370	78	Box	5	7/90 - 4/98
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.4 D	AJA	2370	75	Box	5	8/97 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.4 D Syncro	AAB	2370	78	Box	5	0/92 - 9/98
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5	AAF	2461	110	Box	5	1/90 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5	AET	2461	115	Box	5	8/96 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5 Syncro	AAF	2461	110	Box	5	0/92 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5 Syncro	AET	2461	115	Box	5	8/96 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5 TDI	ACV	2461	102	Box	5	9/95 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5 TDI	AJT	2461	88	Box	5	2/98 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5 TDI	AXG	2461	151	Box	5	9/00 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.5 TDI Syncro	ACV	2461	102	Box	5	9/95 - 4/03
大众运输者四代巴士(70XB,70XC,7DB,7DW)					1/95 - 4/00
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 D	1X	1896	60	Bus	4	9/90 - 2/95
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 TD	ABL	1896	68	Bus	4	0/92 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.0	AAC	1968	84	Bus	4	9/90 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D	AAB	2370	78	Bus	5	9/90 - 4/98
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D	AJA	2370	75	Bus	5	8/97 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro	AAB	2370	78	Bus	5	0/92 - 9/98
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AAF	2461	110	Bus	5	1/90 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5	AET	2461	115	Bus	5	8/96 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro	AAF	2461	110	Bus	5	1/92 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro	AET	2461	115	Bus	5	7/96 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	ACV	2461	102	Bus	5	9/95 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	AJT	2461	88	Bus	5	5/98 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	AHY	2461	151	Bus	5	5/98 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI Syncro	ACV	2461	102	Bus	5	1/96 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR6	AMV	2792	204	Bus	6	4/00 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR 6	AES	2792	140	Bus	6	1/95 - 4/00
大众运输者四代卡车(70XD)					0/92 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.0	AAC	1968	84	Platform/Chassis	4	7/90 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D	AAB	2370	78	Platform/Chassis	5	9/90 - 4/98
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D	AJA	2370	75	Platform/Chassis	5	8/97 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.4 D Syncro	AAB	2370	78	Platform/Chassis	5	0/92 - 9/98
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AAF	2461	110	Platform/Chassis	5	1/90 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5	AET	2461	115	Platform/Chassis	5	8/96 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 Syncro	AAF	2461	110	Platform/Chassis	5	0/92 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 Syncro	AET	2461	115	Platform/Chassis	5	8/96 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI	ACV	2461	102	Platform/Chassis	5	9/95 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI	AJT	2461	88	Platform/Chassis	5	5/98 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.5 TDI Syncro	ACV	2461	102	Platform/Chassis	5	5/98 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 1.9 D	1X	1896	61	Platform/Chassis	4	7/90 - 2/95
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 1.9 TD	ABL	1896	68	Platform/Chassis	4	0/92 - 4/03

适用车型

VOLKSWAGEN EuroVan 2001-2004

建议每5000公里检查刹车片系统
保证刹车系统正常工作
前刹车片建议在3-5公里内更换，或出现偏磨情况
后刹车片建议在5-7公里内更换

通常遇到以下几种情况需要更换刹车片:
1、刹车报警器开始报警;
2、刹车片摩擦材料厚度小于3mm;
3、刹车片被制动液或机油浸蚀过;
4、同轮两侧或同轴两轮的刹车片摩擦不均匀;

通常遇到以下几种情况需要更换刹车盘:
1、当刹车出现抖动;
2、车辆行驶6万公里以上，制动存在隐患时;
3、刹车盘磨损超过2mm;
