Brake Shoe Set:04495-35080--福建华日汽车配件有限公司

产品描述
参考号:	04495-35080
华日编号:	HRK2260

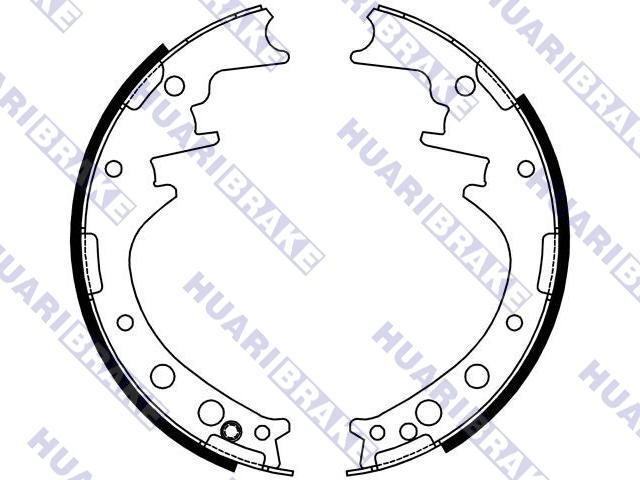

名称:	Brake Shoe Set
单位:	SET
价格:
Rear Axle Brake System : AKEBONO Diameter : 254 mm Width : 58 mm

车型	发动机			类型	缸数	年份
丰田戴娜卡车					9/84 - 8/87
DYNA Platform/Chassis (_U_, _Y_) 2.4 D	2J	2449	75	Platform/Chassis	4	9/84 - 8/87
丰田海狮一代箱式车(_H_)					7/77 - 3/83
HIACE I Box (RH1_, LH3_, RH3_, RH2_, LH2_, LH1_) 2.0 (RH25-32)	18R	1968	88	Box	4	7/77 - 3/83
丰田海狮一代巴士(_H_)					2/77 - 1/82
HIACE I Wagon (LH1_, RH1_, LH3_, RH3_, LH2_, RH2_) 1.6 (RH20_, RH30_)	12R	1587	67	Bus	4	2/77 - 1/82
丰田海狮二代箱式车(H5_)					3/83 - 1/89
HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 2.0 (YH6_, YN5)	3Y	1998	88	Box	4	1/84 - 1/89
HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 2.2 D (LH7_, LH5_, LH3_)	2Y	2173	67	Box	4	3/83 - 1/89
HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 2.4 D (LH7_, LH6_, LH5_)	2Y	2446	75	Box	4	5/84 - 1/89
HIACE II Box (LH5_, YH7_, LH7_, LH6_, YH6_, YH5_) 1.8 (YN5_)	2Y	1812	79	Box	4	3/83 - 1/89
丰田海狮二代巴士(H5_)					8/84 - 8/89
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 1.8 (H5G)	L	1812	79	Bus	4	3/83 - 1/89
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 2.0 (YH51_, YH61_)	3Y	1998	88	Bus	4	1/85 - 8/89
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 2.2 D (H5G)	L	2173	67	Bus	4	3/83 - 1/89
HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_) 2.4 D (H5G)	2L	2446	75	Bus	4	8/84 - 8/89
丰田海狮三代箱式车(_H10_)					8/89 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.0 (RCH102_, RCH112_)	1RZ	1998	101	Box	4	2/90 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4 (RZH10)	2RZ-E	2438	120	Box	4	8/89 - 8/95
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 2.4 D (LH10_, LH11_)	2L	2446	75	Box	4	8/89 - 8/95
丰田海狮三代巴士(_H10_)					8/89 - 8/95
HIACE III Wagon (_H1_) 2.0 (RZH102)	1RZ	1998	101	Bus	4	8/89 - 4/98
HIACE III Wagon (_H1_) 2.4 (RZH103)	2L	2438	120	Bus	4	8/89 - 8/95
HIACE III Wagon (_H1_) 2.4 D (LH102)	2L	2446	75	Bus	4	8/89 - 8/95
丰田 HILUX IV Pickup (_N5_, _N6_)					1/87 - 3/89
HILUX IV Pickup (_N5_, _N6_) 2.0 (YN57)	3Y	1998	88	Pickup	4	1/84 - 2/86
HILUX IV Pickup (_N5_, _N6_) 2.2 4WD (YN6_)	4Y	2237	94	Pickup	4	1/87 - 3/89
丰田 HILUX V Pickup (_N_, KZN1_, VZN1_)					9/88 - 8/97
HILUX V Pickup (_N_, KZN1_, VZN1_) 1.8 (YN5_, YN8_, YN85)	2Y	1812	83	Pickup	4	9/88 - 6/98
HILUX V Pickup (_N_, KZN1_, VZN1_) 2.4 D (LN85_)	2L	2446	83	Pickup	4	9/88 - 8/97
大众 TARO					9/91 - 7/94
TARO 1.8	2Y	1812	83	Pickup	4	4/89 - 9/94
TARO 2.2	4Y	2237	94	Pickup	4	6/89 - 7/94
TARO 2.4 D	2L	2446	83	Pickup	4	6/89 - 3/97
TARO 2.4 D	2L	2446	80	Pickup	4	9/91 - 7/94

适用车型

TOYOTA DYNA / TOYOACE YY52 2000 S/1.25T 93' 9-95' 5
TOYOTA DYNA / TOYOACE YY51 1800 S 87' 8-93' 9
TOYOTA DYNA / TOYOACE LY50 2400 S/1.25T 85' 8-95' 5
TOYOTA DYNA / TOYOACE LY50 2400 S/W 88' 8-95' 5
TOYOTA HIACE YH51V 2000 87' 8-89' 8
TOYOTA HIACE LH80 2400 S 87' 8-95' 7
TOYOTA HIACE YH62V 2000 F 87' 8-89' 8
TOYOTA HIACE LH80 2400 W 87' 2-95' 7
TOYOTA HIACE LH85 2400 87' 10-95' 7
TOYOTA HIACE LH90 2400 S 91' 9-95' 5
TOYOTA HIACE YH71B 2000 F 87' 8-89' 8
TOYOTA HIACE YH71V 2000 F 87' 8-89' 8
TOYOTA HIACE LH71B 2400 F 87' 8-89' 8
TOYOTA HIACE LH61V(H) 2400 S/F 87' 8-89' 8
TOYOTA HIACE LH61B 2400 F 87' 8-89' 8
TOYOTA HIACE LH71V 2400 F 87' 8-89' 8
TOYOTA HIACE LH51V 2400 F 87' 8-89' 8
TOYOTA HIACE YH81 1800 S 88' 3-95' 5
TOYOTA HIACE YH61VH 2000 S/F 87' 8-89' 8
TOYOTA HIACE YH50V 1800 F 87' 8-89' 8
TOYOTA HIACE YH52V 2000 F 87' 8-89' 8
TOYOTA HIACE LH95 2400 91' 9-95' 5
TOYOTA HIACE YH61V 2000 S/F 87' 8-89' 8
TOYOTA HIACE TRUCK YY101 2000 95' 5-96' 10
TOYOTA HILUX YN80 1800 88' 8-94' 8
TOYOTA HILUX YN86 2000 94' 8-97' 8
TOYOTA HILUX YN85 1800 88' 8-94' 8
TOYOTA HILUX LN80 2400 88' 9-94' 8
TOYOTA HILUX LN86 2800 94' 8-97' 8
TOYOTA HILUX LN85 2400 88' 9-94' 8

建议每5000公里检查刹车片系统
保证刹车系统正常工作
前刹车片建议在3-5公里内更换，或出现偏磨情况
后刹车片建议在5-7公里内更换

通常遇到以下几种情况需要更换刹车片:
1、刹车报警器开始报警;
2、刹车片摩擦材料厚度小于3mm;
3、刹车片被制动液或机油浸蚀过;
4、同轮两侧或同轴两轮的刹车片摩擦不均匀;

通常遇到以下几种情况需要更换刹车盘:
1、当刹车出现抖动;
2、车辆行驶6万公里以上，制动存在隐患时;
3、刹车盘磨损超过2mm;
