Brake Pad Set:1H0 698 151 A--Fujian Huari Automotive Parts Co., Ltd.

Beschreibung
Ref.:	1H0 698 151 A
Huari No.:	HR1514- 1
Name:	Brake Pad Set
Unit:	SET
Price:

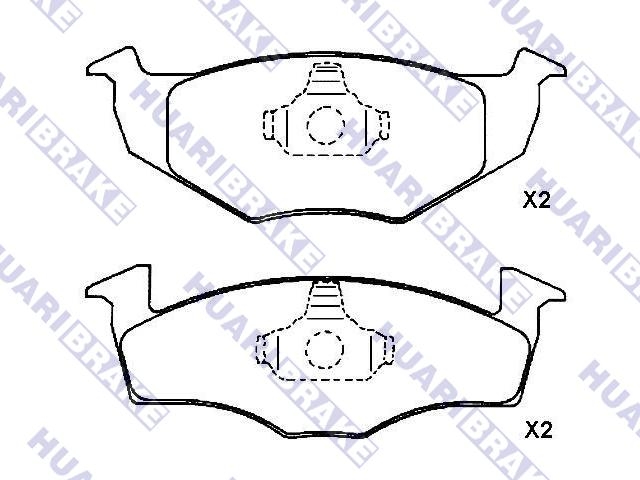

Front Axle Brake System : Volkswagen Width : 141.6 mm Height : 51.2 mm Height 1 : 50.3 mm Thickness : 19.7 mm

Model	Engine			Type	CYL	year
VOLKSWAGEN GOLF III (1H1)					1/91 - 8/97
GOLF III (1H1) 1.4	ABD	1390	60	Hatchback	4	0/91 - 8/97
GOLF III (1H1) 1.4	AEX	1390	55	Hatchback	4	1/91 - 8/97
GOLF III (1H1) 1.6	ABU	1598	75	Hatchback	4	9/92 - 8/97
GOLF III (1H1) 1.8	AAM	1781	75	Hatchback	4	1/91 - 8/97
GOLF III (1H1) 1.8	ABS	1781	90	Hatchback	4	1/91 - 8/97
GOLF III (1H1) 1.9 D	1Y	1896	65	Hatchback	4	1/91 - 8/97
GOLF III (1H1) 1.9 SDI	AEY	1896	64	Hatchback	4	7/95 - 8/97
GOLF III (1H1) 1.9 TD,GTD	AAZ	1896	75	Hatchback	4	1/91 - 8/97
VOLKSWAGEN GOLF III Variant (1H5)					7/93 - 4/99
GOLF III Variant (1H5) 1.4	ABD	1390	55	Estate	4	7/93 - 4/99
GOLF III Variant (1H5) 1.4	ABD	1390	60	Estate	4	7/93 - 4/99
VOLKSWAGEN POLO CLASSIC (6KV2)					1/95 - 9/97
POLO CLASSIC (6V2) 57 1.7 SDI	AKW	1716	57	Saloon	4	7/97 - 9/01
POLO CLASSIC (6V2) 60 1.4	AEX	1390	60	Saloon	4	2/95 - 9/01
POLO CLASSIC (6V2) 64 1.9 SDI	AEY	1896	64	Saloon	4	2/95 - 8/99
POLO CLASSIC (6V2) 68 1.9 SDI	AQM	1896	68	Saloon	4	8/99 - 1/02
POLO CLASSIC (6V2) 75 1.4 16V	APE	1390	75	Saloon	4	0/99 - 9/01
POLO CLASSIC (6V2) 75 1.6	AEE	1598	75	Saloon	4	1/95 - 9/01
POLO CLASSIC (6V2) 75 1.6	1F	1595	75	Saloon	4	1/95 - 9/97
VOLKSWAGEN POLO Van Box Body / Hatchback (6N1)					7/96 - 2/99
POLO Van Box Body / Hatchback (6N1) 1.9 SDI	AGD	1896	64	Box	4	7/96 - 2/99
VOLKSWAGEN POLO Variant (6V5)					8/99 - 9/01
POLO Variant (6V5) 1.4	AEX	1390	60	Estate	4	5/97 - 9/01
POLO Variant (6V5) 1.4	AKP	1390	54	Estate	4	2/98 - 9/01
POLO Variant (6V5) 1.4 16V	APE	1390	75	Estate	4	0/99 - 9/01
POLO Variant (6V5) 1.6	AEE	1598	75	Estate	4	5/97 - 9/01
POLO Variant (6V5) 1.7 SDI	AKW	1716	57	Estate	4	8/97 - 9/01
POLO Variant (6V5) 1.9 SDI	AEY	1896	64	Estate	4	6/97 - 9/01
POLO Variant (6V5) 1.9 SDI	AGP	1896	68	Estate	4	8/99 - 9/01
VOLKSWAGEN VENTO (1H2)					4/97 - 9/98
VENTO (1H2) 1.4	ABD	1390	55	Saloon	4	1/91 - 9/98
VENTO (1H2) 1.4	ABD	1390	60	Saloon	4	1/91 - 9/98
VENTO (1H2) 1.6	ABU	1598	75	Saloon	4	9/92 - 9/98
VENTO (1H2) 1.8	AAM	1781	75	Saloon	4	1/91 - 9/98
VENTO (1H2) 1.9 D	1Y	1896	65	Saloon	4	1/91 - 9/98
VENTO (1H2) 1.9 SDI	AEY	1896	64	Saloon	4	4/97 - 9/98

Anwendung

VOLKSWAGEN Jetta 1996

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
