Brake Pad Set:7M3 698 451--Fujian Huari Automotive Parts Co., Ltd.

Beschreibung
Ref.:	7M3 698 451
Huari No.:	HR1089- 2
Name:	Brake Pad Set
Unit:	SET
Price:

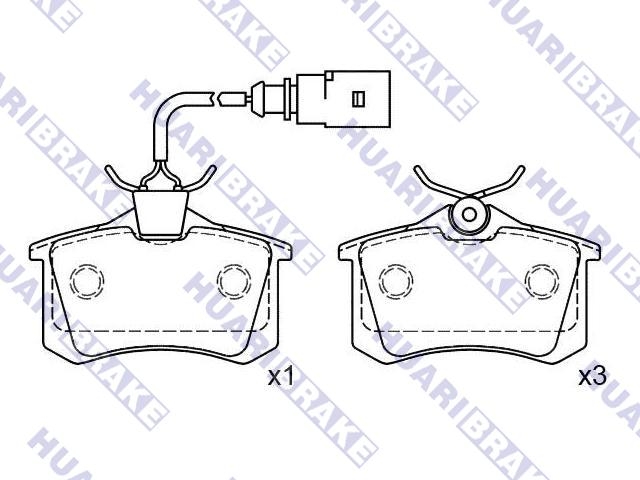

Rear Axle Brake System : TRW Width : 86.8 mm Height : 52.9 mm Thickness : 17.2 mm

Model	Engine			Type	CYL	year
AUDI A4 Avant (8D5, B5)					5/00 - 9/01
A4 Avant (8D5, B5) RS4 quattro	AZR	2671	380	Estate	6	5/00 - 9/01
FORD GALAXY (WGR)					4/00 - 5/06
GALAXY (WGR) 1.9 TDI	AHU	1896	90	MPV	4	3/95 - 5/06
GALAXY (WGR) 1.9 TDI	AUY	1896	115	MPV	4	4/00 - 5/06
GALAXY (WGR) 1.9 TDI	ASZ	1896	130	MPV	4	2/03 - 5/06
GALAXY (WGR) 1.9 TDI	BTB	1896	150	MPV	4	5/05 - 5/06
GALAXY (WGR) 2.0 i	NSE	1998	116	MPV	4	1/95 - 5/06
GALAXY (WGR) 2.3 16V	Y5B	2295	146	MPV	4	1/97 - 5/06
GALAXY (WGR) 2.3 16V	E5SB	2295	140	MPV	4	9/01 - 5/06
GALAXY (WGR) 2.8 V6	AYL	2792	204	MPV	6	4/00 - 5/06
SEAT ALHAMBRA (7V8, 7V9)					0/97 - 3/10
ALHAMBRA (7V8, 7V9) 1.9 TDI	1Z	1896	90	MPV	4	4/96 - 3/10
ALHAMBRA (7V8, 7V9) 1.9 TDI	AFN	1896	110	MPV	4	8/96 - 6/00
ALHAMBRA (7V8, 7V9) 1.9 TDI	AUY	1896	115	MPV	4	6/00 - 3/10
ALHAMBRA (7V8, 7V9) 1.9 TDI	ASZ	1896	131	MPV	4	1/02 - 1/08
ALHAMBRA (7V8, 7V9) 1.9 TDI	ARL	1896	150	MPV	4	5/05 - 5/07
ALHAMBRA (7V8, 7V9) 1.9 TDI 4motion	AUY	1896	115	MPV	4	6/00 - 3/10
ALHAMBRA (7V8, 7V9) 2.0 i	ADY	1984	115	MPV	4	4/96 - 3/10
ALHAMBRA (7V8, 7V9) 2.8 V6	AYL	2792	204	MPV	6	6/00 - 3/10
ALHAMBRA (7V8, 7V9) 2.8 V6 4motion	AYL	2792	204	MPV	6	6/00 - 3/10
ALHAMBRA (7V8, 7V9) 2.0 TDI	BRT	1968	140	MPV	4	1/05 - 3/10
ALHAMBRA (7V8, 7V9) 1.9 Tdi 4x4	ASZ	1896	131	MPV	4	6/05 - 1/08
ALHAMBRA (7V8, 7V9) 1.8 T 20V	AJH	1781	150	MPV	4	0/97 - 3/10
SEAT IBIZA IV (6L1)					2/03 - 5/08
IBIZA III (6L1) 1.8 T FR	BJX	1781	150	Hatchback	4	2/03 - 5/08
VOLKSWAGEN SHARAN (7M8,7M9,7M6)					9/95 - 2/00
SHARAN (7M8, 7M9, 7M6) 1.8 T 20V	AJH	1781	150	MPV	4	9/97 - 3/10
SHARAN (7M8, 7M9, 7M6) 1.9 TDI	1Z	1896	90	MPV	4	9/95 - 3/10
SHARAN (7M8, 7M9, 7M6) 1.9 TDI	AFN	1896	110	MPV	4	9/96 - 4/00
SHARAN (7M8, 7M9, 7M6) 1.9 TDI	AUY	1896	115	MPV	4	4/00 - 3/10
SHARAN (7M8, 7M9, 7M6) 1.9 TDI	ASZ	1896	130	MPV	4	1/02 - 3/10
SHARAN (7M8, 7M9, 7M6) 1.9 TDI	BTB	1896	150	MPV	4	6/05 - 3/10
SHARAN (7M8, 7M9, 7M6) 1.9 TDI 4motion	AUY	1896	115	MPV	4	4/00 - 3/10
SHARAN (7M8, 7M9, 7M6) 2.0	ADY	1984	115	MPV	4	9/95 - 3/10
SHARAN (7M8, 7M9, 7M6) 2.8 VR6	AAA	2792	174	MPV	6	9/95 - 4/00
SHARAN (7M8, 7M9, 7M6) 2.8 VR6 Syncro	AAA	2792	174	MPV	6	1/96 - 4/00
SHARAN (7M8, 7M9, 7M6) 2.0 TDI	BRT	1968	140	MPV	4	1/05 - 3/10
SHARAN (7M8, 7M9, 7M6) 2.0 LPG	ATM	1984	115	MPV	4	4/06 - 3/10
SHARAN (7M8, 7M9, 7M6) 2.0 16V	ABF	1984	150	MPV	4	9/95 - 2/00
VOLKSWAGEN TRANSPORTER IV Box (70A, 70H, 7DA, 7DH)					7/90 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 1.9 TD	ABL	1896	68	Box	4	0/92 - 4/03
TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) 2.0	AAC	1968	84	Box	4	7/90 - 4/03
VOLKSWAGEN TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)					9/90 - 4/03
TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.0	AAC	1968	84	Bus	4	9/90 - 4/03
VOLKSWAGEN TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D					7/90 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 1.9 TD	ABL	1896	68	Platform/Chassis	4	0/92 - 4/03
TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D 2.0	AAC	1968	84	Platform/Chassis	4	7/90 - 4/03

Anwendung

SEAT Alhambra (Latin America) 1998-2002

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
