Brake Pad Set:94 130 145--Fujian Huari Automotive Parts Co., Ltd.

Beschreibung
Ref.:	94 130 145
Huari No.:	HR1088
Name:	Brake Pad Set
Unit:	SET
Price:

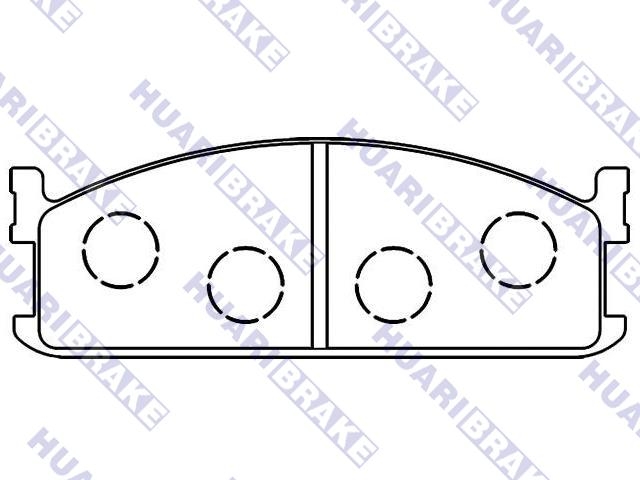

Front Axle Brake System : SUM Width : 133.2 mm Height : 47 mm Thickness : 15.5 mm

Model	Engine			Type	CYL	year
ISUZU MIDI Box (98000N)					9/92 - 7/96
MIDI Box (98000N) 2.0	4ZC1	1995	83	Box	4	6/88 - 8/92
MIDI Box (98000N) 2.0 4WD	4ZC1	1995	83	Box	4	6/88 - 8/92
MIDI Box (98000N) 2.2 D	4FD1	2189	61	Box	4	6/88 - 8/92
MIDI Box (98000N) 2.2 D 4WD	4FD1	2189	61	Box	4	6/88 - 8/92
MIDI Box (98000N) 2.4 TD	4FG1T	2380	76	Box	4	9/92 - 7/96
ISUZU MIDI Bus (94000, 98000)					6/88 - 8/92
MIDI Bus (94000, 98000) 2.2 D 4WD (94000)	4FD1	2189	61	Bus	4	6/88 - 8/92
MIDI Bus (94000, 98000) 2.4 D (98000)	4FG1T	2380	76	Bus	4	1/94 - 7/96
MIDI Bus (94000, 98000) 2.0 (98000)	4ZC1	1995	83	Bus	4	6/88 - 8/92
MIDI Bus (94000, 98000) 2.0 4WD (94000)	4ZC1	1995	83	Bus	4	6/88 - 8/92
MIDI Bus (94000, 98000) 2.0 TD (98000)	4FC1T	1995	69	Bus	4	1/89 - 8/92
MIDI Bus (94000, 98000) 2.2 D (98000)	4FD1	2189	61	Bus	4	6/88 - 8/92
ISUZU MIDI Van (94000, 98000)					1/94 - 7/96
MIDI Van (94000, 98000) 2.0 (98000)	4ZC1	1995	83	Bus	4	6/88 - 8/92
MIDI Van (94000, 98000) 2.0 4WD (94000)	4ZC1	1995	83	Bus	4	6/88 - 8/92
MIDI Van (94000, 98000) 2.0 TD (98000)	4FC1T	1995	69	Bus	4	1/89 - 8/92
MIDI Van (94000, 98000) 2.2 D (98000)	4FD1	2189	61	Bus	4	6/88 - 8/92
MIDI Van (94000, 98000) 2.2 D 4WD (94000)	4FD1	2189	61	Bus	4	6/88 - 8/92
MIDI Van (94000, 98000) 2.4 TD (98000)	4FG1T	2380	76	Bus	4	1/94 - 7/96
VAUXHALL MIDI Bus (MID)					9/84 - 5/88
MIDI Bus (MID) 1.8	4ZB1	1817	86	Bus	4	9/84 - 5/88
MIDI Bus (MID) 2.0 TD	4FC1	1995	68	Bus	4	9/84 - 5/88
VAUXHALL MIDI II Bus (MID)					0/94 - 8/97
MIDI II Bus (MID) 2.0 TD	4FC1T	1995	69	Bus	4	6/88 - 7/90
MIDI II Bus (MID) 2.0	20PET	1994	82	Bus	4	6/88 - 8/97
MIDI II Bus (MID) 2.2 D	4FD1	2189	61	Bus	4	6/88 - 2/94
MIDI II Bus (MID) 2.4 TD	4FG1T	2380	76	Bus	4	9/94 - 8/97
MIDI II Bus (MID) 2.4 TD	4FG1T	2380	94	Bus	4	0/94 - 8/97

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
