Brake Pad Set:94 136 642--Fujian Huari Automotive Parts Co., Ltd.

1 2 3

Beschreibung
Ref.:	94 136 642
Huari No.:	HR1541
Name:	Brake Pad Set
Unit:	SET
Price:

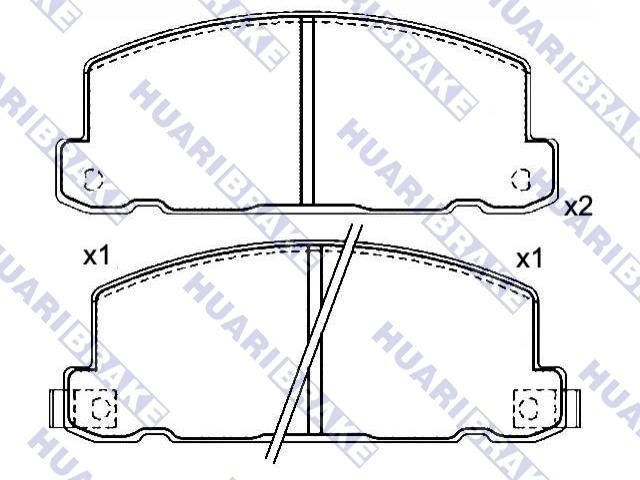

Front Axle Brake System : AKB Width : 121 mm Height : 48.6 mm Thickness : 15.5 mm

Brake Pad Set:94 136 642

Model	Engine	Chassis			Type	CYL	year
ISUZU TROOPER I Open Off-Road Vehicle (UBS)						1/85 - 2/91
TROOPER I Open Off-Road Vehicle (UBS) 2.2 TD (UBS52)	C223T		2238	72	Open Off-Road Vehicle	4	3/84 - 2/91
TROOPER I Open Off-Road Vehicle (UBS) 2.3 (UBS16)	4ZD1		2254	90	Open Off-Road Vehicle	4	1/85 - 2/91
ISUZU						4/86 - 2/90
CAMPO (KB) 2.0 (KB28)	G200Z		1950	79	Pickup	4	6/85 - 2/88
CAMPO (KB) 2.2 D 4WD (KBD42, KBD47)	C223		2238	53	Pickup	4	1/83 - 2/90
CAMPO (KB) 2.2 D (KBD27)	C223		2238	53	Pickup	4	4/86 - 2/90

Anwendung

ISUZU Pickup 1984-1987
ISUZU Trooper 1985-1986

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
