Brake Pad Set:58101-17A00--Fujian Huari Automotive Parts Co., Ltd.

Beschreibung
Ref.:	58101-17A00
Huari No.:	HR1492- 1
Name:	Brake Pad Set
Unit:	SET
Price:

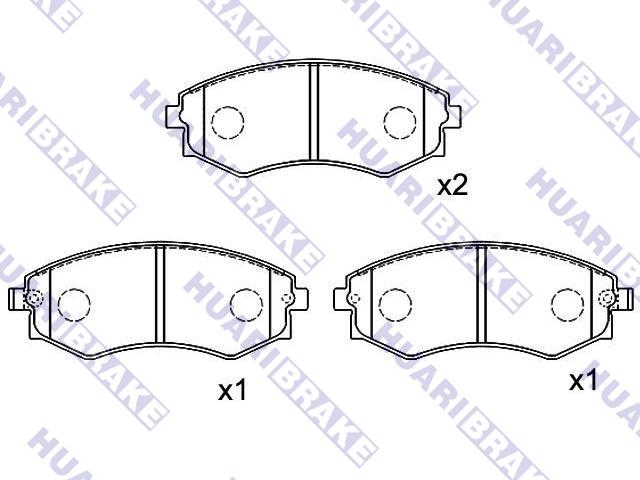

Front Axle Brake System : Mando Width : 136.9 mm Height : 53.4 mm Thickness : 17.5 mm

Model	Engine			Type	CYL	year
HAFEI SIGMA / SAIMA					6/02 - /
SIGMA / SAIMA 1.5	4G15S	1488	103	Hatchback	4	4/09 - 2/14
SIGMA / SAIMA 1.3	DA471Q	1299	86	Hatchback	4	6/02 - /
HYUNDAI (BEIJING) ELANTRA Hatchback					2/03 - 2/10
ELANTRA Hatchback 1.6	G4GR	1599	109	Hatchback	4	2/03 - 2/10
HYUNDAI (BEIJING) ELANTRA Saloon					2/03 - 2/14
ELANTRA Saloon 1.8	G4GB	1795	129	Saloon	4	2/03 - 2/08
ELANTRA Saloon 1.6 LPG	G4GR	1599	111	Saloon	4	3/08 - /
ELANTRA Saloon 1.6	G4GA	1599	110	Saloon	4	2/03 - 2/14
HYUNDAI (BEIJING) SONATA (EF)					2/02 - 7/07
SONATA (EF) 2.5	G6BW	2493	165	Saloon	6	2/02 - 7/07
HYUNDAI COUPE (RD)					3/01 - 4/02
COUPE (RD) 1.6 16V	G4GR	1599	116	Coupe	4	3/98 - 4/02
COUPE (RD) 1.6 i 16V	4G61	1599	114	Coupe	4	2/96 - 4/02
COUPE (RD) 2.0 16V	G4GF	1975	139	Coupe	4	8/96 - 4/02
COUPE (RD) 2.0 16V	G4DF	1975	135	Coupe	4	3/01 - 4/02
HYUNDAI ELANTRA (XD)					6/00 - 7/06
ELANTRA (XD) 1.6	G4ED-G	1599	107	Hatchback	4	6/00 - 7/06
ELANTRA (XD) 1.8	G4BB	1795	132	Hatchback	4	6/00 - 7/06
ELANTRA (XD) 2.0	G4GC-G	1975	139	Hatchback	4	6/00 - 7/06
HYUNDAI ELANTRA Saloon (XD)					6/00 - 7/06
ELANTRA Saloon (XD) 1.6	G4ED-G	1599	107	Saloon	4	6/00 - 7/06
ELANTRA Saloon (XD) 1.8	G4BB	1795	132	Saloon	4	6/00 - 7/06
ELANTRA Saloon (XD) 2.0	G4EC-G	1975	139	Saloon	4	6/00 - 7/06
HYUNDAI MATRIX (FC)					6/01 - 8/10
MATRIX (FC) 1.5 CRDi	D3-EA	1493	82	MPV	3	0/01 - 8/10
MATRIX (FC) 1.6	G4ED-G	1599	103	MPV	4	6/01 - 8/10
MATRIX (FC) 1.8	G4GB-G	1795	122	MPV	4	6/01 - 8/10
HYUNDAI SONATA IV (EF)					6/98 - 0/01
SONATA IV (EF) 2.0 16V	G4JP-G	1997	136	Saloon	4	6/98 - 0/01
SONATA IV (EF) 2.4 16V	G4BS	2351	143	Saloon	4	3/98 - 0/01
SONATA IV (EF) 2.5 V6 24V	G6BV-G	2493	160	Saloon	6	6/98 - 0/01
KIA JOICE					9/01 - /
JOICE 2.0	G4CP	1997	139	MPV	4	2/00 - /
JOICE 2.0	G4CP	1997	120	MPV	4	9/01 - /
KIA MAGENTIS (GD, MS)					5/01 - /
MAGENTIS (GD, MS) 2.0	G4JP	1997	136	Saloon	4	5/01 - 9/05
MAGENTIS (GD, MS) 2.5 V6	G6BV	2493	169	Saloon	6	5/01 - /

Anwendung

HYUNDAI Elantra 1999-2000
HYUNDAI Elantra 2005-2006
HYUNDAI Tiburon 2000-2001
KIA Optima 2001-2002

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
