Brake Shoe Set:MB500822--Fujian Huari Automotive Parts Co., Ltd.

Beschreibung
Ref.:	MB500822
Huari No.:	HRK6686

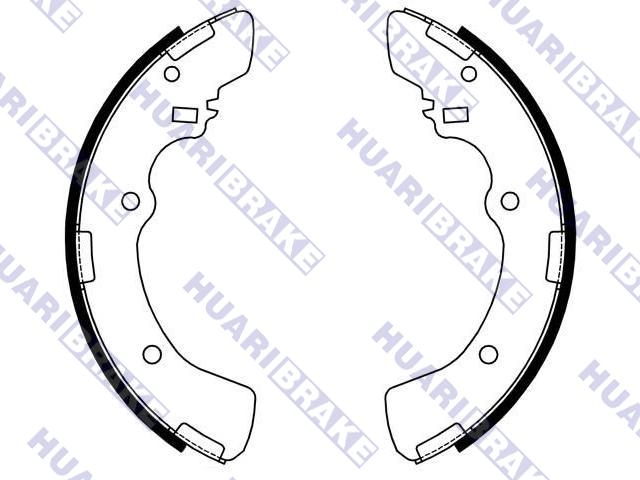

Name:	Brake Shoe Set
Unit:	SET
Price:
Rear Axle Brake System : SUMITOMO Diameter : 254 mm Width : 50 mm

Model	Engine			Type	CYL	year
MITSUBISHI L 300 III Bus (P0_W, P1_W, P2_W)					1/88 - 5/04
L 300 III Bus (P0_W, P1_W, P2_W) 2.0 4WD (P23W, P03W, P13W)	4G63 (SOHC 8V)	1997	88	Bus	4	2/86 - 5/04
L 300 III Bus (P0_W, P1_W, P2_W) 2.0 4WD (P23W, P03W, P13W)	4G63 (SOHC 8V)	1997	90	Bus	4	1/86 - 5/04
L 300 III Bus (P0_W, P1_W, P2_W) 2.4 4WD (P24W)	G64B	2351	109	Bus	4	1/86 - 2/90
L 300 III Bus (P0_W, P1_W, P2_W) 2.4 4WD (P24W)	4G64 (8V)	2351	112	Bus	4	1/90 - 5/04
L 300 III Bus (P0_W, P1_W, P2_W) 2.5 TD 4WD (P25W)	4D56 T	2477	87	Bus	4	1/88 - 5/04
MITSUBISHI L 300 III Platform/Chassis (P1_T )					1/94 - 4/00
L 300 III Platform/Chassis (P1_T ) 2.0 (P13T)	4G63 (SOHC 8V)	1997	116	Platform/Chassis	4	7/94 - 4/00
L 300 III Platform/Chassis (P1_T ) 2.5 TD (P15T)	4D56 T	2477	87	Platform/Chassis	4	1/94 - 4/00

Anwendung

MITSUBISHI DELICA P24W 2400 89' 8-94' 5
MITSUBISHI DELICA P45V 2500 90' 8-99' 11
MITSUBISHI DELICA P23V,W 2000 86' 4-94' 4
MITSUBISHI DELICA P35W 2500 86' 4-99' 12
MITSUBISHI DELICA P27V 2000 94' 5-99' 10
MITSUBISHI DELICA P13T 2000 94' 5-99' 10
MITSUBISHI DELICA P15T 2500 ABS 94' 5-99' 11
MITSUBISHI DELICA P15T 2500 ABS 94' 5-99' 11

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
