Brake Pad Set:867 698 151--Fujian Huari Automotive Parts Co., Ltd.

Description
Ref.:	867 698 151
Huari No.:	HR1075- 2
Name:	Brake Pad Set
Unit:	SET
Price:

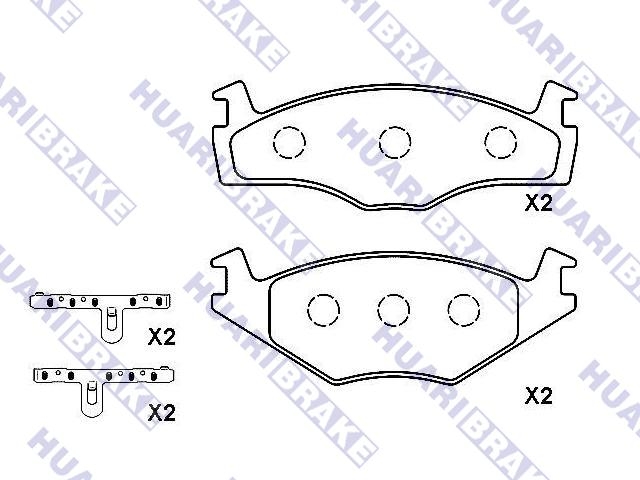

Front Axle Brake System : Volkswagen Width : 137.6 mm Height : 48.8 mm Height 1 : 51.3 mm Thickness : 17.3 mm

Model	Engine			Type	CYL	year
VOLKSWAGEN POLO (6N1)					0/94 - 0/99
POLO (6N1) 45 1.0	AEV	1043	45	Hatchback	4	0/94 - 9/96
POLO (6N1) 50 1.0	AER	999	50	Hatchback	4	9/96 - 0/99
POLO (6N1) 55 1.3	ADX	1296	55	Hatchback	4	0/94 - 7/95
POLO (6N1) 55 1.4	AEX	1390	55	Hatchback	4	8/95 - 0/99
POLO (6N1) 60 1.4	AEX	1390	60	Hatchback	4	7/95 - 0/99
POLO (6N1) 60 1.7 SDI	AKU	1716	60	Hatchback	4	8/97 - 0/99
POLO (6N1) 64 1.9 D	AEF	1896	64	Hatchback	4	0/94 - 0/99
POLO (6N1) 64 1.9 SDI	AGD	1896	64	Hatchback	4	7/96 - 0/99
POLO (6N1) 75 1.6	AEA	1598	75	Hatchback	4	0/94 - 0/99
VOLKSWAGEN POLO (6N2)					0/99 - 9/01
POLO (6N2) 1.4	AKK	1390	60	Hatchback	4	0/99 - 9/01
POLO (6N2) 1.4 16V	AHW	1390	75	Hatchback	4	0/99 - 9/01
POLO (6N2) 1.4 TDI	AMF	1422	75	Hatchback	3	0/99 - 9/01
POLO (6N2) 1.7 SDI	AKU	1716	60	Hatchback	4	0/99 - 9/01
POLO (6N2) 1.9 D	AEF	1896	64	Hatchback	4	0/99 - 9/01
POLO (6N2) 1.9 SDI	AGD	1896	64	Hatchback	4	0/99 - 9/01
POLO (6N2) 1.0	ALD	999	50	Hatchback	4	0/99 - 9/01
VOLKSWAGEN POLO (86C, 80)					0/90 - 9/94
POLO (86C, 80) 1.0	HZ	1043	45	Hatchback	4	8/85 - 1/92
POLO (86C, 80) 1.0 CAT	AAK	1043	45	Hatchback	4	8/89 - 9/94
POLO (86C, 80) 1.3 CAT	MH	1272	55	Hatchback	4	7/87 - 9/94
POLO (86C, 80) 1.3 CAT	3F	1272	75	Hatchback	4	0/89 - 3/91
POLO (86C, 80) 1.4 D	1W	1398	48	Hatchback	4	0/90 - 9/94
VOLKSWAGEN POLO Box (86CF)					8/92 - 7/94
POLO Box (86CF) 1.0	AAU	1043	45	Box	4	8/92 - 7/94
POLO Box (86CF) 1.3	AAV	1272	54	Box	4	8/92 - 7/94
POLO Box (86CF) 1.4 D	1W	1398	48	Box	4	8/92 - 7/94
VOLKSWAGEN POLO CLASSIC (6KV2)					2/95 - 9/01
POLO CLASSIC (6V2) 60 1.4	AEX	1390	60	Saloon	4	2/95 - 9/01
VOLKSWAGEN POLO Coupe (86C, 80)					8/90 - 9/94
POLO Coupe (86C, 80) 1.0	HZ	1043	45	Coupe	4	8/85 - 1/92
POLO Coupe (86C, 80) 1.0 CAT	AAK	1043	45	Coupe	4	8/89 - 9/94
POLO Coupe (86C, 80) 1.3 CAT	2G	1272	55	Coupe	4	7/87 - 8/94
POLO Coupe (86C, 80) 1.3 CAT	3F	1272	75	Coupe	4	0/89 - 9/94
POLO Coupe (86C, 80) 1.4 D	1W	1398	48	Coupe	4	8/90 - 9/94
VOLKSWAGEN POLO Van Box Body / Hatchback (6N1)					7/96 - 2/99
POLO Van Box Body / Hatchback (6N1) 1.0	AAU	1043	45	Box	4	0/94 - 2/99
POLO Van Box Body / Hatchback (6N1) 1.7 SDI	AKU	1716	60	Box	4	8/97 - 2/99
POLO Van Box Body / Hatchback (6N1) 1.9 D	AEF	1896	64	Box	4	0/94 - 2/99
POLO Van Box Body / Hatchback (6N1) 1.9 SDI	AGD	1896	64	Box	4	7/96 - 2/99
VOLKSWAGEN POLO Variant (6V5)					5/97 - 9/01
POLO Variant (6V5) 1.4	AEX	1390	60	Estate	4	5/97 - 9/01

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
