Brake Pad Set:5 888 781--Fujian Huari Automotive Parts Co., Ltd.

Description
Ref.:	5 888 781
Huari No.:	HR1661- 1

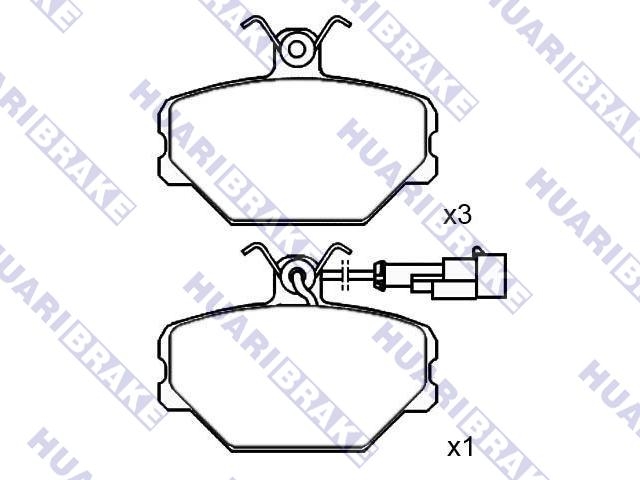

Name:	Brake Pad Set
Unit:	SET
Price:
Front Axle Brake System : TRW Width : 90 mm Height : 63 mm Thickness : 17 mm

Model	Engine			Type	CYL	year
FIAT TEMPRA (159)					6/92 - 8/96
TEMPRA (159) 1.6 (159.AD)	159 A3.000	1581	86	Saloon	4	3/90 - 8/96
TEMPRA (159) 1.4 i.e. (159.AC, 159.AX)	160 A1.046	1372	69	Saloon	4	4/90 - 8/96
TEMPRA (159) 1.6 i.e. (159.AE)	159 A3.046	1581	78	Saloon	4	6/90 - 7/92
TEMPRA (159) 1.6 i.e. (159.AJ)	159 B9.000	1581	90	Saloon	4	6/94 - 8/96
TEMPRA (159) 1.6 i.e. (159.AS, 159.AT)	159 A3.048	1581	75	Saloon	4	6/92 - 8/96
FIAT TEMPRA S.W. (159)					6/94 - 8/96
TEMPRA S.W. (159_) 1.6	159 A3.000	1581	86	Estate	4	2/90 - 4/93
TEMPRA S.W. (159_) 1.4 i.e. (159.AC, 159.AX)	160 A1.046	1372	69	Estate	4	0/92 - 8/96
TEMPRA S.W. (159_) 1.6 i.e. (159.AE)	159 A3.046	1581	78	Estate	4	0/90 - 8/96
TEMPRA S.W. (159_) 1.6 i.e. (159.AJ)	159 B9.000	1581	90	Estate	4	6/94 - 8/96
FIAT TIPO (160_)					1/88 - 0/91
TIPO (160_) 1.4 (160.AC)	160 A1.000	1372	71	Hatchback	4	7/87 - 2/89
TIPO (160_) 1.4 i.e.	159 A2.000	1372	78	Hatchback	4	5/89 - 4/95
TIPO (160_) 1.4 i.e. (160.AP, 160.AD, 160.EA)	160 A1.046	1372	70	Hatchback	4	5/89 - 4/95
TIPO (160_) 1.6 (160.AE)	160 A2.000	1581	83	Hatchback	4	1/88 - 0/91
TIPO (160_) 1.6 i.e.	149 C2.046	1595	90	Hatchback	4	2/88 - 5/91
TIPO (160_) 1.6 i.e. (160.AF)	159 A3.046	1581	78	Hatchback	4	7/90 - 1/93
TIPO (160_) 1.7 D (160.AG)	149 B4.000	1697	58	Hatchback	4	1/88 - 0/94
TIPO (160_) 1.9 TD (160.AW)	160 B6.046	1929	80	Hatchback	4	3/92 - 6/93
TIPO (160_) 1.9 TD (160.EL, 160.GL, 160.AQ, 160.EI, 160.AR)	160 D1.000	1929	90	Hatchback	4	9/90 - 4/95
TIPO (160_) 1.1 (160.AA)	160 A3.000	1108	56	Hatchback	4	1/88 - 0/91
FIAT UNO (146A/E)					1/93 - 8/00
UNO (146_) 1.6	159 A3.046	1581	88	Hatchback	4	2/89 - 4/93
UNO (146_) 1.6 R	159 A3.048	1581	90	Hatchback	4	2/92 - 2/95
UNO (146_) 1.9 D	149 B5.046	1929	60	Hatchback	4	9/89 - 3/94
UNO (146_) 50 i.e. 1.1	146 C3.000	1116	49	Hatchback	4	6/92 - 2/93
UNO (146_) 60 Diesel 1.7	146 B2.000	1698	57	Hatchback	4	9/89 - 2/93
UNO (146_) 70 i.e. 1.4	160 A1.046	1372	70	Hatchback	4	9/89 - 7/96
UNO (146_) 70 i.e. 1.4	146 C1.000	1372	72	Hatchback	4	9/89 - 2/93
UNO (146_) 70 S 1.4	160 A1.048	1372	71	Hatchback	4	0/88 - 6/06
UNO (146_) 70 TD 1.4	146 B3.000	1367	71	Hatchback	4	0/86 - 0/90
UNO (146_) 75 i.e. 1.5	138C2.048	1498	75	Hatchback	4	0/85 - 2/93
UNO (146_) 55 1.0	146 C4.011	996	56	Hatchback	4	1/93 - 8/00
LANCIA DEDRA (835)					8/89 - 3/93
DEDRA (835) 1.6 i.e. (835AA)	835 A1.000	1581	90	Saloon	4	8/89 - 6/94
DEDRA (835) 1.6 i.e. (835AB)	835 A1.046	1581	78	Saloon	4	8/89 - 3/93
TIANMA CUV					9/04 - /
CUV 2.4	4G64	2351	125	MPV	4	9/04 - /

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
