Description
Ref.:	1 075 558
Huari No.:	HR1066
Name:	Brake Pad Set
Unit:	SET
Price:

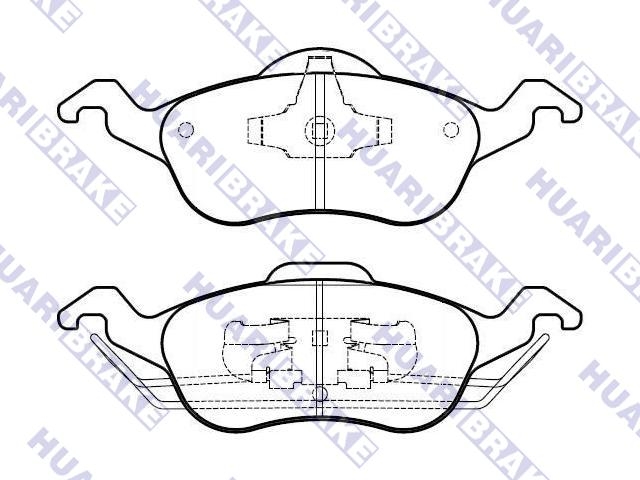

Front Axle Brake System : ATE Width : 177.8 mm Height : 58 mm Height 1 : 60.8 mm Thickness : 19.4 mm

Model	Engine			Type	CYL	year
FORD FOCUS (DAW, DBW)					0/98 - 1/04
FOCUS (DAW, DBW) 1.4 16V	FXDA	1388	75	Hatchback	4	0/98 - 1/04
FOCUS (DAW, DBW) 1.6 16V	FYDA	1596	100	Hatchback	4	0/98 - 1/04
FOCUS (DAW, DBW) 1.8 16V	EYDC	1796	115	Hatchback	4	0/98 - 1/04
FOCUS (DAW, DBW) 1.6 16V Flexifuel	FYDH	1596	102	Hatchback	4	1/02 - 1/04
FOCUS (DAW, DBW) 1.8 DI / TDDi	BHDA	1753	75	Hatchback	4	8/99 - 1/04
FOCUS (DAW, DBW) 1.8 TDCi	F9DA	1753	115	Hatchback	4	3/01 - 1/04
FOCUS (DAW, DBW) 1.8 TDCi	FFDA	1753	100	Hatchback	4	8/02 - 1/04
FOCUS (DAW, DBW) 1.8 Turbo DI / TDDi	C9DC	1753	90	Hatchback	4	0/98 - 1/04
FOCUS (DAW, DBW) 2.0 16V	EDDC	1988	131	Hatchback	4	0/98 - 1/04
FORD FOCUS Estate (DNW)					2/03 - 1/05
FOCUS Turnier (DNW) 1.4 16V	FXDA	1388	75	Estate	4	2/99 - 1/04
FOCUS Turnier (DNW) 1.6 16V	FYDA	1596	100	Estate	4	2/99 - 1/04
FOCUS Turnier (DNW) 1.8 16V	EYDC	1796	115	Estate	4	2/99 - 1/04
FOCUS Turnier (DNW) 1.8 DI / TDDi	BHDA	1753	75	Estate	4	8/99 - 1/04
FOCUS Turnier (DNW) 1.8 TDCi	F9DA	1753	115	Estate	4	3/01 - 1/04
FOCUS Turnier (DNW) 1.8 TDCi	FFDA	1753	100	Estate	4	8/02 - 1/04
FOCUS Turnier (DNW) 1.8 Turbo DI / TDDi	C9DC	1753	90	Estate	4	2/99 - 1/04
FOCUS Turnier (DNW) 2.0 16V	EDDC	1988	131	Estate	4	2/99 - 1/04
FOCUS Turnier (DNW) 1.6 16V Flexifuel	FYDH	1596	102	Estate	4	1/02 - 1/04
FOCUS Turnier (DNW) 1.8 BiFuel		1796	111	Estate	4	2/03 - 1/05
FORD FOCUS Saloon (DFW)					2/99 - 1/04
FOCUS Saloon (DFW) 1.8 16V	EYDC	1796	115	Saloon	4	2/99 - 1/04
FOCUS Saloon (DFW) 1.8 TDCi	F9DA	1753	115	Saloon	4	3/01 - 1/04
FOCUS Saloon (DFW) 1.8 TDCi	FFDA	1753	100	Saloon	4	8/02 - 1/04
FOCUS Saloon (DFW) 1.8 Turbo DI / TDDi	C9DC	1753	90	Saloon	4	2/99 - 1/04
FOCUS Saloon (DFW) 2.0 16V	EDDC	1988	131	Saloon	4	2/99 - 1/04
FOCUS Saloon (DFW) 1.8 Turbo DI / TDDi	BHDA	1753	75	Saloon	4	8/01 - 3/05
FOCUS Saloon (DFW) 1.4 16V	FXDA	1388	75	Saloon	4	2/99 - 1/04
FOCUS Saloon (DFW) 1.6 16V	FYDA	1596	100	Saloon	4	2/99 - 1/04

Application

FORD Focus 2000-2004

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
