  • Description
     04491-B1051
     HR1666

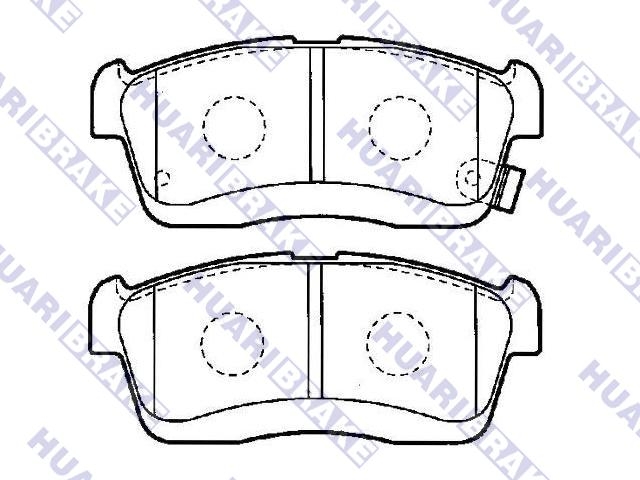

     Brake Pad Set
     SET

    Front Axle
    Brake System : HITACHI
    Width : 108.7 mm
    Height : 45.5 mm
    Thickness : 14.5 mm

Brake Pad Set:04491-B1051
Model Engine Chassis Type CYL year
DAIHATSU CHARADE (L2_)  3/03 - /
DAIHATSU CUORE VI (L251, L250_, L260_)  5/03 - /
DAIHATSU CUORE VII (L275_, L285_, L276_)  4/07 - /
DAIHATSU SIRION (M3_)  1/05 - /
DAIHATSU TREVIS  6/06 - /
SUBARU JUSTY IV  1/07 - /

Application

DAIHATSU - MIRA L250S 660 4AT 2WD 02' 12
DAIHATSU - MIRA L260S 660 4AT 4WD 02' 12
DAIHATSU - SONICA L415S 660 4WD RS 06' 6
DAIHATSU - SONICA L405S 660 2WD RS 06' 6
DAIHATSU - TANTO L350S 660 2WD 03' 11
DAIHATSU - TANTO L360S 660 4WD 03' 11
DAIHATSU - TANTO L360S 660 03' 11
DAIHATSU - BOON M300S 1000 2WD 04' 6
DAIHATSU - BOON M310S 1000 4WD 04' 6
DAIHATSU - BOON M301S 1300 2WD 04' 6
TOYOTA - PASSO KGC10 1000 2WD 04' 6
TOYOTA - PASSO QNC10 1300 2WD 04' 6
TOYOTA - PASSO KGC15 1000 4WD 04' 6


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
