• Description
     04495-44010
     HRK2339

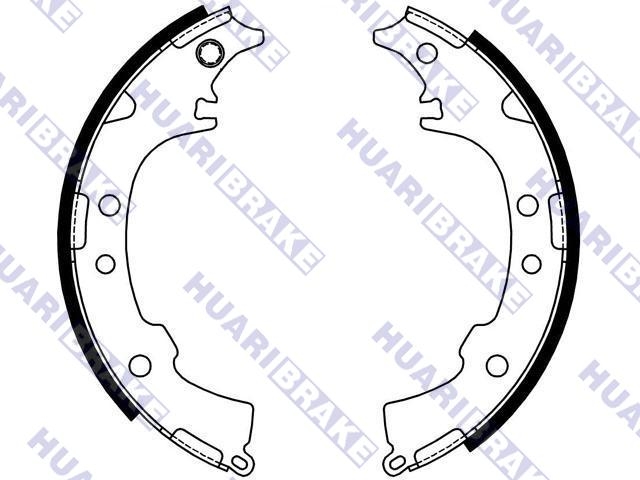

     Brake Shoe Set
     SET

    Rear Axle
    Brake System : SUMITOMO
    Diameter : 228.6 mm
    Width : 42 mm

Brake Shoe Set:04495-44010
Model Engine Chassis Type CYL year
DAIHATSU TERIOS (J1_)  0/00 - 0/05
HUALI TERIOS  7/04 - /
TOYOTA (FAW) DARIO TERIOS (J100)  1/03 - 2/06
TOYOTA PICNIC (_XM1_)  8/97 - 2/01


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
