• Descripción
     701 698 525 A

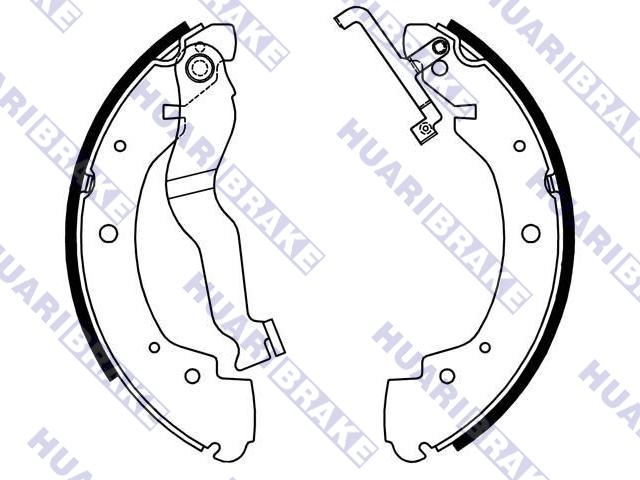

     Brake Shoe Set
     SET

    Rear Axle
    Brake System : BENDIX
    Diameter : 268 mm
    Width : 56 mm

Brake Shoe Set:701 698 525 A
Model Engine Chassis Type CYL year
VOLKSWAGEN TRANSPORTER IV Box (70A, 70H, 7DA, 7DH)  9/95 - 4/03
VOLKSWAGEN TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ)  1/96 - 4/03
VOLKSWAGEN TRANSPORTER IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D  8/96 - 4/03


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
