• Descripción
     04466-02010
     HR1257

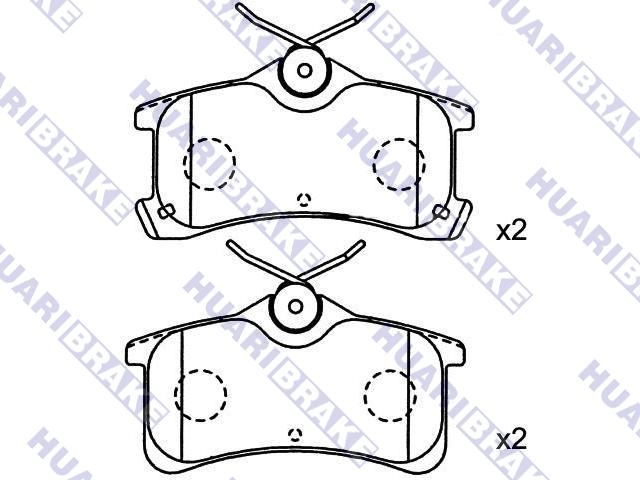

     Brake Pad Set
     SET

    Rear Axle
    Brake System : GRL
    Width : 86.9 mm
    Height : 45.9 mm
    Thickness : 15.6 mm

Brake Pad Set:04466-02010
Model Engine Chassis Type CYL year
TOYOTA AVENSIS (_T22_)  0/99 - 2/03
TOYOTA AVENSIS Estate (_T22_)  0/00 - 2/03
TOYOTA AVENSIS Liftback (_T22_)  0/99 - 2/03
TOYOTA COROLLA (_E11_)  2/00 - 1/01
TOYOTA COROLLA Compact (_E11_)  2/00 - 1/02
TOYOTA COROLLA Liftback (_E11_)  2/00 - 1/02


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
