Descripción
Ref.:	B092-26-310
Huari No.:	HRK3356

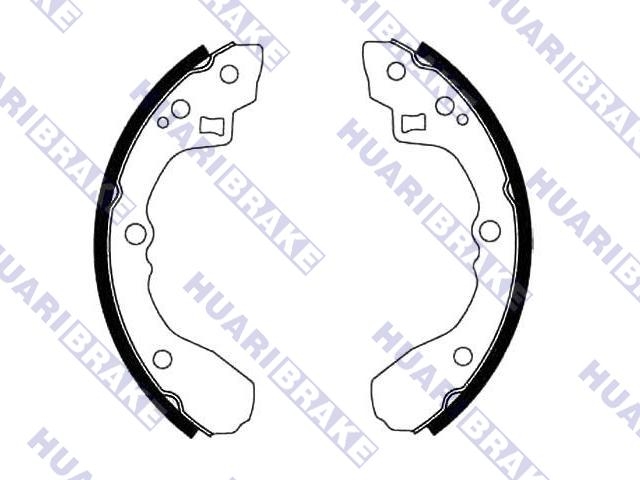

Name:	Brake Shoe Set
Unit:	SET
Price:
Rear Axle Brake System : SUMITOMO Diameter : 200 mm Width : 26 mm

Model	Engine			Type	CYL	year
MAZDA 323 III (BF)					1/87 - 5/89
323 III (BF) 1.1	E1	1071	55	Saloon	4	8/85 - 4/90
323 III (BF) 1.3	E3	1296	60	Saloon	4	8/85 - 5/89
323 III (BF) 1.5	E5	1490	75	Saloon	4	8/85 - 5/89
323 III (BF) 1.5	B5	1498	73	Saloon	4	9/87 - 0/89
323 III (BF) 1.5 i	E5E3	1490	95	Saloon	4	8/85 - 5/89
323 III (BF) 1.5 i Turbo	E5E2	1490	115	Saloon	4	8/85 - 5/89
323 III (BF) 1.6 GT	B6	1598	105	Saloon	4	1/86 - 2/88
323 III (BF) 1.6 GT	B6	1597	85	Saloon	4	1/86 - 0/89
323 III (BF) 1.7 D	PN27	1720	54	Saloon	4	9/86 - 5/89
323 III (BF) 1.7 D	PN46	1720	57	Saloon	4	1/87 - 5/89
MAZDA 323 III Hatchback (BF)					1/87 - 5/89
323 III Hatchback (BF) 1.1	E1	1071	54	Hatchback	4	9/85 - 0/89
323 III Hatchback (BF) 1.3	E3	1296	60	Hatchback	4	9/85 - 2/87
323 III Hatchback (BF) 1.4	B3	1324	60	Hatchback	4	9/87 - 0/89
323 III Hatchback (BF) 1.5	E5	1490	75	Hatchback	4	8/85 - 5/89
323 III Hatchback (BF) 1.5	B5	1498	73	Hatchback	4	9/87 - 0/89
323 III Hatchback (BF) 1.5 i	E5E3	1490	95	Hatchback	4	8/85 - 5/89
323 III Hatchback (BF) 1.5 i Turbo	E5E2	1490	115	Hatchback	4	8/85 - 5/89
323 III Hatchback (BF) 1.6	B68	1597	73	Hatchback	4	9/87 - 0/89
323 III Hatchback (BF) 1.6 GT	B6	1598	105	Hatchback	4	8/85 - 8/93
323 III Hatchback (BF) 1.6 GT	B6	1597	86	Hatchback	4	9/87 - 0/89
323 III Hatchback (BF) 1.7 D	PN27	1720	54	Hatchback	4	4/86 - 5/89
323 III Hatchback (BF) 1.7 D	PN46	1720	57	Hatchback	4	1/87 - 5/89
MAZDA 323 III Station Wagon (BW)					0/89 - 3/93
323 III Station Wagon (BW) 1.7 D	PN26	1720	54	Estate	4	1/86 - 8/87
323 III Station Wagon (BW) 1.7 D	PN26	1720	57	Estate	4	1/86 - 0/89
323 III Station Wagon (BW) 1.7 D	PN26	1720	56	Estate	4	0/89 - 3/93

Aplicación

MAZDA ETUDE BFSP 1500 88' 2-90' 12
MAZDA LASER BFMPF 1600 R 85' 10-89' 3
MAZDA LASER BFTPF 1300 87' 3-89' 3
MAZDA LASER BF7PF 1700 85' 7-89' 3
MAZDA LASER BFSPF 1500 87' 3-89' 3
MAZDA FAMILIA BFSP 1500 87' 2-89' 1
MAZDA FAMILIA BW3W 1300 R 89' 11-94' 6
MAZDA FAMILIA BFTP 1300 87' 2-89' 1
MAZDA FAMILIA BF7P 1700 85' 7-89' 1
MAZDA FAMILIA BW5W 1500 R 89' 10-94' 6
MAZDA FAMILIA BFMP 1600 R 85' 10-89' 1

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
