Brake Pad Set:6C11-2M008-AC--Fujian Huari Automotive Parts Co., Ltd.

Descripción
Ref.:	6C11-2M008-AC
Huari No.:	HR1717

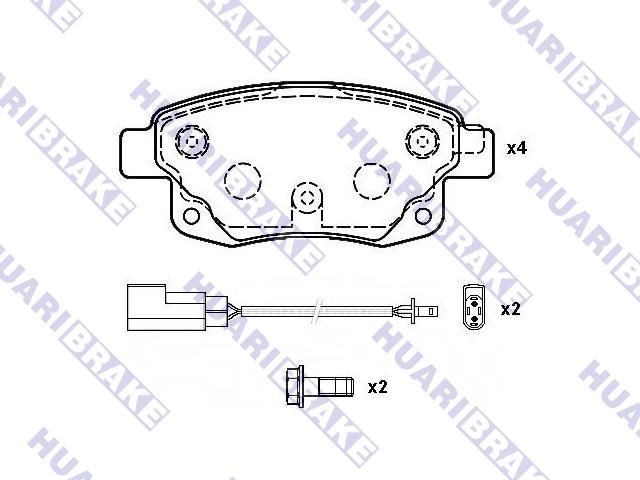

Name:	Brake Pad Set
Unit:	SET
Price:
Rear Axle Brake System : BOS Width : 122.8 mm Height : 53.9 mm Thickness : 17.3 mm

Model	Engine			Type	CYL	year
FORD TRANSIT Box					4/06 - 8/14
TRANSIT Box (FA_ _) 2.2 TDCi	P8FA	2198	85	Box	4	4/06 - 8/14
TRANSIT Box (FA_ _) 2.3 16V [RWD]	GZFA	2261	145	Box	4	4/06 - 8/14
TRANSIT Box (FA_ _) 2.2 TDCi	QVFA	2198	110	Box	4	4/06 - 8/14
TRANSIT Box (FA_ _) 2.2 TDCi	QWFA	2198	130	Box	4	4/06 - 8/14
TRANSIT Box (FA_ _) 3.2 TDCi [RWD]	SAFA	3199	200	Box	5	9/07 - 8/14
TRANSIT Box (FA_ _) 2.2 TDCi	SRFA	2198	115	Box	4	0/08 - 8/14
TRANSIT Box (FA_ _) 2.4 TDCi [RWD]	H9FD	2402	140	Box	4	4/06 - 8/14
TRANSIT Box (FA_ _) 2.4 TDCi 4x4	H9FB	2402	140	Box	4	1/06 - 8/14
TRANSIT Box (FA_ _) 2.2 TDCi	PGFA	2198	140	Box	4	0/07 - 8/14
TRANSIT Box (FA_ _) 2.4 TDCi [RWD]	JXFA	2402	115	Box	4	4/06 - 8/14
TRANSIT Box (FA_ _) 2.4 TDCi [RWD]	PHFA	2402	100	Box	4	4/06 - 8/14
FORD TRANSIT Bus					1/06 - 8/14
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi	P8FA	2198	85	Bus	4	4/06 - 8/14
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi	QVFA	2198	110	Bus	4	4/06 - 8/14
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi	QWFA	2198	130	Bus	4	4/06 - 8/14
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 3.2 TDCi	SAFA	3199	200	Bus	5	2/08 - 8/14
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi	SRFA	2198	115	Bus	4	0/08 - 8/14
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2 TDCi	PGFA	2198	140	Bus	4	0/07 - 8/14
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi	H9FD	2402	140	Bus	4	4/06 - /
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi	JXFA	2402	115	Bus	4	4/06 - 8/14
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi	PHFA	2402	100	Bus	4	4/06 - 8/14
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.4 TDCi 4x4	H9FB	2402	140	Bus	4	1/06 - 8/14
FORD TRANSIT Flatbed/Chassis					0/07 - 9/11
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi [RWD]	H9FD	2402	140	Platform/Chassis	4	4/06 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi [RWD]	JXFA	2402	115	Platform/Chassis	4	4/06 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi [RWD]	PHFA	2402	100	Platform/Chassis	4	4/06 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.3 16V [RWD]	GZFA	2261	145	Platform/Chassis	4	4/06 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.2 TDCi	P8FA	2198	85	Platform/Chassis	4	4/06 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.2 TDCi	QVFA	2198	110	Platform/Chassis	4	4/06 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.2 TDCi	QWFA	2198	130	Platform/Chassis	4	4/06 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 3.2 TDCi [RWD]	SAFA	3199	200	Platform/Chassis	5	9/07 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.2 TDCi	SRFA	2198	115	Platform/Chassis	4	0/08 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.4 TDCi 4x4	H9FB	2402	140	Platform/Chassis	4	1/06 - 8/14
TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.2 TDCi	PGFA	2198	140	Platform/Chassis	4	0/07 - 9/11
FORD TRANSIT TOURNEO					0/07 - 8/14
TRANSIT TOURNEO 2.2 TDCi	QVFA	2198	110	Bus	4	7/06 - 8/14
TRANSIT TOURNEO 2.2 TDCi	QWFA	2198	131	Bus	4	7/06 - 8/14
TRANSIT TOURNEO 2.2 TDCi	SRFA	2198	115	Bus	4	0/08 - 8/14
TRANSIT TOURNEO 2.2 TDCi	PGFA	2198	140	Bus	4	0/07 - 8/14

Aplicación

FORD TRUCK Transit (Latin America) 2007-2010

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
