Brake Pad Set:04491-B1051--Fujian Huari Automotive Parts Co., Ltd.

Descripción
Ref.:	04491-B1051
Huari No.:	HR1666
Name:	Brake Pad Set
Unit:	SET
Price:

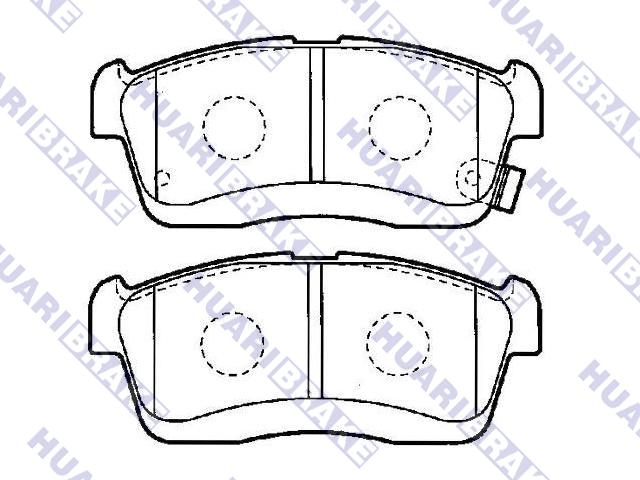

Front Axle Brake System : HITACHI Width : 108.7 mm Height : 45.5 mm Thickness : 14.5 mm

Model	Engine			Type	CYL	year
DAIHATSU CHARADE (L2_)					3/03 - /
CHARADE (L2_) 1.0 (L251S)	EJ-VE	989	58	Hatchback	3	3/03 - /
DAIHATSU CUORE VI (L251, L250_, L260_)					5/03 - /
CUORE VI (L251, L250_, L260_) 1.0	EJ-VE	989	58	Hatchback	3	5/03 - /
DAIHATSU CUORE VII (L275_, L285_, L276_)					4/07 - /
CUORE VII (L275_, L285_, L276_) 1.0	1KR-FE	998	70	Hatchback	3	4/07 - /
DAIHATSU SIRION (M3_)					1/05 - /
SIRION (M3_) 1.0	1KR-FE	998	70	Hatchback	3	1/05 - /
SIRION (M3_) 1.3 (M301)	K3-VE	1298	87	Hatchback	4	1/05 - /
DAIHATSU TREVIS					6/06 - /
TREVIS 1.0	EJ-VE	989	58	Hatchback	3	6/06 - /
SUBARU JUSTY IV					1/07 - /
JUSTY IV 1.0	1KR-FE	998	69	Hatchback	3	1/07 - /

Aplicación

DAIHATSU - MIRA L250S 660 4AT 2WD 02' 12
DAIHATSU - MIRA L260S 660 4AT 4WD 02' 12
DAIHATSU - SONICA L415S 660 4WD RS 06' 6
DAIHATSU - SONICA L405S 660 2WD RS 06' 6
DAIHATSU - TANTO L350S 660 2WD 03' 11
DAIHATSU - TANTO L360S 660 4WD 03' 11
DAIHATSU - TANTO L360S 660 03' 11
DAIHATSU - BOON M300S 1000 2WD 04' 6
DAIHATSU - BOON M310S 1000 4WD 04' 6
DAIHATSU - BOON M301S 1300 2WD 04' 6
TOYOTA - PASSO KGC10 1000 2WD 04' 6
TOYOTA - PASSO QNC10 1300 2WD 04' 6
TOYOTA - PASSO KGC15 1000 4WD 04' 6

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
