Brake Pad Set:BK21-2K021-AA--Fujian Huari Automotive Parts Co., Ltd.

Descripción
Ref.:	BK21-2K021-AA
Huari No.:	HR1778
Name:	Brake Pad Set
Unit:	PCS
Price:

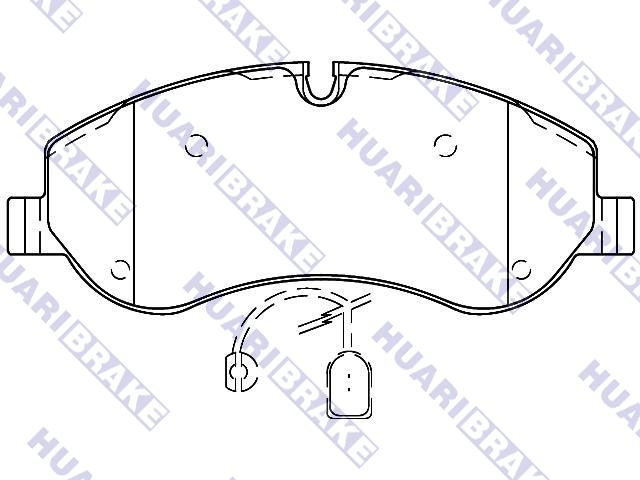

Front Axle Brake System : BOSCH Width : 171.8 mm Height : 68.8 mm Thickness : 17 mm

Model	Engine			Type	CYL	year
FORD TOURNEO CUSTOM Bus					4/12 - /
TOURNEO CUSTOM Bus 2.2 TDCi	DRFF	2198	100	Bus	4	4/12 - /
TOURNEO CUSTOM Bus 2.2 TDCi	CYF4	2198	125	Bus	4	4/12 - /
TOURNEO CUSTOM Bus 2.2 TDCi	CVFF	2198	155	Bus	4	4/12 - /
FORD TRANSIT Box					8/13 - /
TRANSIT Box 2.2 TDCi [RWD]	DRR5	2198	100	Box	4	8/13 - /
TRANSIT Box 2.2 TDCi	CVF5	2198	155	Box	4	8/13 - /
TRANSIT Box 2.2 TDCi	CYF5	2198	125	Box	4	8/13 - /
TRANSIT Box 2.2 TDCi	DRF5	2198	100	Box	4	8/13 - /
TRANSIT Box 2.2 TDCi 4x4		2198	155	Box	4	8/13 - /
TRANSIT Box 2.2 TDCi 4x4	CYR5	2198	125	Box	4	8/13 - /
TRANSIT Box 2.2 TDCi [RWD]	CVR5	2198	155	Box	4	8/13 - /
TRANSIT Box 2.2 TDCi [RWD]	USR6	2198	125	Box	4	8/13 - /
FORD TRANSIT Bus					8/13 - /
TRANSIT Bus 2.2 TDCi [RWD]	USR6	2198	125	Bus	4	8/13 - /
TRANSIT Bus 2.2 TDCi [RWD]	CVR5	2198	155	Bus	4	8/13 - /
TRANSIT Bus 2.2 TDCi	CYF5	2198	125	Bus	4	8/13 - /
TRANSIT Bus 2.2 TDCi	DRF5	2198	100	Bus	4	8/13 - /
TRANSIT Bus 2.2 TDCi 4x4	CYR5	2198	125	Bus	4	8/13 - /
TRANSIT Bus 2.2 TDCi [RWD]	DRR5	2198	100	Bus	4	8/13 - /
FORD TRANSIT CUSTOM Box					4/12 - /
TRANSIT CUSTOM Box 2.2 TDCi	DRFF	2198	100	Box	4	4/12 - /
TRANSIT CUSTOM Box 2.2 TDCi	CYF4	2198	125	Box	4	4/12 - /
TRANSIT CUSTOM Box 2.2 TDCi	CVFF	2198	155	Box	4	4/12 - /
FORD TRANSIT CUSTOM Bus					4/12 - /
TRANSIT CUSTOM Bus 2.2 TDCi	DRFF	2198	100	Bus	4	4/12 - /
TRANSIT CUSTOM Bus 2.2 TDCi	CYF4	2198	125	Bus	4	4/12 - /
TRANSIT CUSTOM Bus 2.2 TDCi	CVFF	2198	155	Bus	4	4/12 - /
FORD TRANSIT Platform/Chassis					8/13 - /
TRANSIT Platform/Chassis 2.2 TDCi	DRF5	2198	100	Platform/Chassis	4	8/13 - /
TRANSIT Platform/Chassis 2.2 TDCi	CYF5	2198	125	Platform/Chassis	4	8/13 - /
TRANSIT Platform/Chassis 2.2 TDCi	CVF5	2198	155	Platform/Chassis	4	8/13 - /
TRANSIT Platform/Chassis 2.2 TDCi 4x4	CYR5	2198	125	Platform/Chassis	4	8/13 - /
TRANSIT Platform/Chassis 2.2 TDCi 4x4		2198	155	Platform/Chassis	4	8/13 - /
TRANSIT Platform/Chassis 2.2 TDCi [RWD]	DRR5	2198	100	Platform/Chassis	4	8/13 - /
TRANSIT Platform/Chassis 2.2 TDCi [RWD]	USR6	2198	125	Platform/Chassis	4	8/13 - /
TRANSIT Platform/Chassis 2.2 TDCi [RWD]	CVR5	2198	155	Platform/Chassis	4	8/13 - /
TRANSIT Platform/Chassis 2.2 TDCi [RWD]	UHR5	2198	135	Platform/Chassis	4	8/13 - /

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
