• Description
     04495-26140
     HRK2317

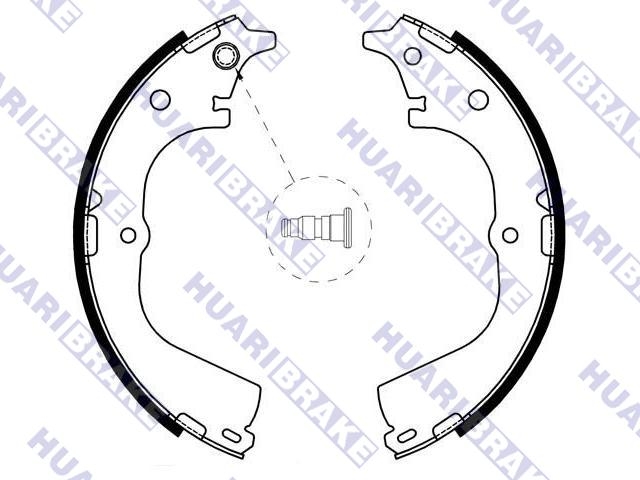

     Brake Shoe Set
     SET

    Rear Axle
    Brake System : AKEBONO
    Diameter : 270m
    Width : 55 mm

Brake Shoe Set:04495-26140
Model Engine Chassis Type CYL year
DAIHATSU ROCKY Hard Top (F7, F8)  5/93 - 2/98
DAIHATSU ROCKY Soft Top (F7, F8)  9/91 - 2/98
TOYOTA HIACE III Box (_H10_)  8/89 - 8/95
TOYOTA HIACE III Wagon (_H10_)  8/89 - 8/95

Application

DAIHATSU RUGGER F73 2800 93' 5-97' 5
DAIHATSU RUGGER F78 2800 93' 5-97' 5
TOYOTA LITE ACE CM52 2000 91' 10-99' 6
TOYOTA LITE ACE CM61 2000 91' 10-99' 6
TOYOTA TOWN ACE CM52 2000 91' 10-99' 6
TOYOTA TOWN ACE CM61 2000 91' 10-99' 6
TOYOTA HIACE LH123V 2800 89' 8-93' 8
TOYOTA HIACE LH125B 2800 89' 8-93' 8
TOYOTA HIACE LH115B 2800 89' 8-93' 8
TOYOTA HIACE RZH112V 2000 89' 8-93' 8
TOYOTA HIACE RZH110G 2000 89' 8-93' 8
TOYOTA HIACE RZH102V 2000 89' 8-93' 8
TOYOTA HIACE RZH100G 2000 89' 8-93' 8
TOYOTA HIACE RZH124B 2000 89' 8-93' 8
TOYOTA HIACE RZH122V 2000 89' 8-93' 8
TOYOTA HIACE LH140G 2400 90' 10-93' 8
TOYOTA HIACE RZH101G 2400 89' 8-93' 8
TOYOTA HIACE LH120G 2400 89' 8-93' 8
TOYOTA HIACE LH110G 2400 89' 8-93' 8
TOYOTA HIACE LH100G 2400 89' 8-93' 8
TOYOTA HIACE LH102V 2400 89' 8-93' 8


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
