Описание
Ref.:	04465-35050
Huari No.:	HR1011
Name:	Brake Pad Set
Unit:	SET
Price:

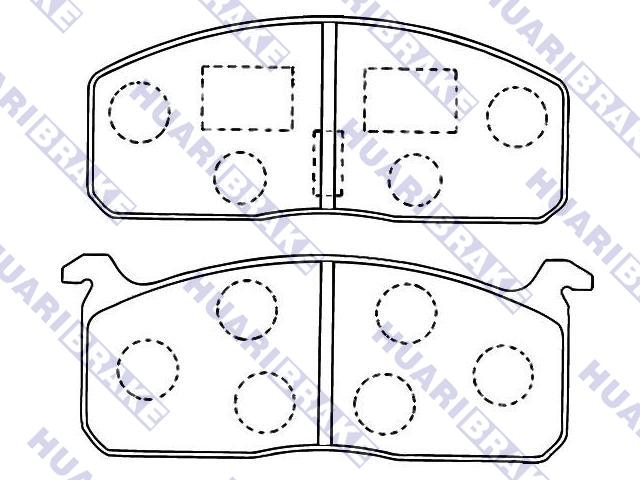

Front Axle Brake System : AKB Width : 120 mm Height : 51 mm Thickness : 15 mm

Brake Pad Set:04465-35050

Model	Engine	Chassis			Type	CYL	year
TOYOTA DYNA Bus (_U3_, _U2_)						8/77 - 8/87
DYNA Bus (_U3_, _U2_) 2.4 D (JU20_)	2J		2449	75	Bus	4	8/77 - 2/79
DYNA Bus (_U3_, _U2_) 3.4 D (BU82_)	13B		3431	90	Bus	4	8/77 - 8/87
TOYOTA DYNA Platform/Chassis (_U_, _Y_)						9/84 - 8/87
DYNA Platform/Chassis (_U_, _Y_) 2.0 (RU20_, RU25_, RU30_)	5R		1997	98	Platform/Chassis	4	8/77 - 8/84
DYNA Platform/Chassis (_U_, _Y_) 2.0 (YU60_)	3Y		1998	107	Platform/Chassis	4	9/84 - 8/87
DYNA Platform/Chassis (_U_, _Y_) 2.4 D	2J		2449	75	Platform/Chassis	4	9/84 - 8/87
DYNA Platform/Chassis (_U_, _Y_) 3.4 D (BU85_, BU82_, BU62_)	13B		3431	90	Platform/Chassis	4	9/84 - 8/87
TOYOTA HIACE I Box (RH1_, LH3_, RH3_, RH2_, LH2_, LH1_)						1/79 - 3/83
HIACE I Box (RH1_, LH3_, RH3_, RH2_, LH2_, LH1_) 1.6 (RH20-30)	12R		1587	67	Box	4	2/77 - 3/83
HIACE I Box (RH1_, LH3_, RH3_, RH2_, LH2_, LH1_) 2.0 (RH25-32)	18R		1968	88	Box	4	7/77 - 3/83
HIACE I Box (RH1_, LH3_, RH3_, RH2_, LH2_, LH1_) 2.2 D (LH20-30)	L		2173	63	Box	4	1/79 - 3/83
TOYOTA HIACE I Wagon (LH1_, RH1_, LH3_, RH3_, LH2_, RH2_)						2/77 - 1/82
HIACE I Wagon (LH1_, RH1_, LH3_, RH3_, LH2_, RH2_) 1.6 (RH20_, RH30_)	12R		1587	67	Bus	4	2/77 - 1/82

По маркам автомобилей

TOYOTA Pickup Heavy (Cab & Chassis 1980-1983

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
