Brake Shoe Set:53201-70A12--Fujian Huari Automotive Parts Co., Ltd.

Описание
Ref.:	53201-70A12
Huari No.:	HRK9921

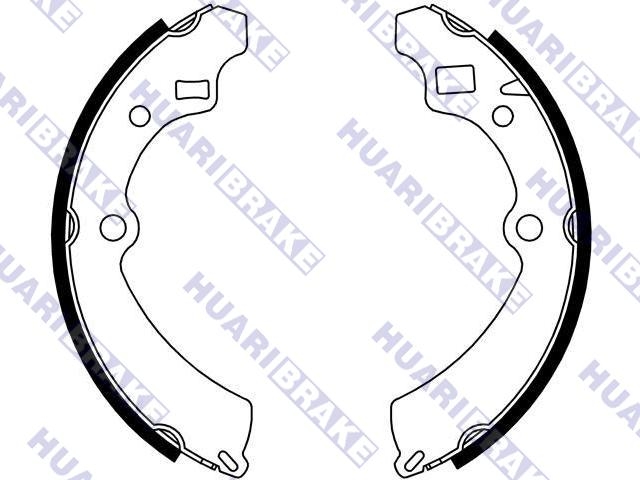

Name:	Brake Shoe Set
Unit:	SET
Price:
Rear Axle Brake System : SUMITOMO Diameter : 220 mm Width : 40 mm

Model	Engine			Type	CYL	year
SUZUKI SAMURAI Closed Off-Road Vehicle (SJ_)					1/88 - 2/04
SAMURAI Closed Off-Road Vehicle (SJ_) 1.3 All-wheel Drive (SJ 413)	G13BA	1298	70	Closed Off-Road Vehicle	4	1/88 - 2/04
SAMURAI Closed Off-Road Vehicle (SJ_) 1.3 All-wheel Drive (SJ 413)	G13A	1324	60	Closed Off-Road Vehicle	4	1/88 - 2/04
SAMURAI Closed Off-Road Vehicle (SJ_) 1.3 All-wheel Drive (SJ 413)	G13A	1324	64	Closed Off-Road Vehicle	4	1/88 - 2/04

По маркам автомобилей

MAZDA AZ OFFROAD JM23W 660 98' 10-
SUZUKI JIMNY JA71V 550 3,4 87' 11-90' 3
SUZUKI JIMNY JA11C 660 90' 3-95' 11
SUZUKI JIMNY JA11V 660 90' 3-95' 11
SUZUKI JIMNY JA12C 660 95' 11-98' 10
SUZUKI JIMNY JA12V 660 95' 11-98' 10
SUZUKI JIMNY JA71C 550 3,4 87' 11-90' 3
SUZUKI JIMNY JA12W 660 95' 11-98' 10
SUZUKI JIMNY JB31W 1300 93' 5-95' 11
SUZUKI JIMNY JA22W 660 95' 11-98' 10
SUZUKI JIMNY JB32W 1300 95' 11-97' 12

Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system
Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
Rear brakes is recommended to replace within 5-7 km

Replace the Disc brake when follow situation happen:
1.Sensor alarm;
2.Friction materials thickness less than 3mm;
3.Friction materials becomes contaminated with brake fluid;
4.Uneven wear within a set;

Replace the brake rote when follow situation happen:
1.Vibrate when braking;
2.Car vehicle performance more than 60000Km and braking unstable;
3.Disc brake thickness wear more than 2mm;
